Evaluation Kit | LEDGEN4PEVK

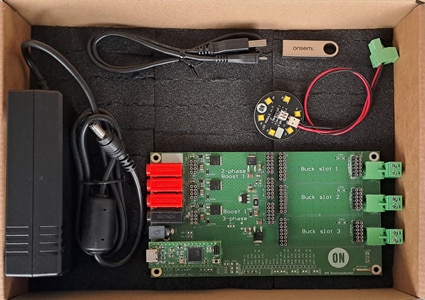

The LEDGEN4PEVK LED Driver Gen4+ Evaluation Kit contains all necessary accessory for quick start of evaluation of Gen 4+ LED Drivers. ONMCU5V0R2GEVB MCU control board in dedicated socket creates interface between GUI SW on PC and evaluated devices. Mother board allows to accommodate wide selection of LED Driver daughter boards. It offers one position for booster device (up to 3 booster phases) and 3 Buck channel slots. When NCV78964 and NCV78935 Daughter Boards are combined, one can get 5 Buck outputs on this setup.

Please note that required LED Driver Daughter Boards have to be ordered separately.

Booster position Daughter Boards:
NCV78902R1DAGEVB
NCV78902R2DAGEVB
NCV78964R1DAGEVB

Buck position Daughter Boards:
NCV78935R1DAGEVB
NCV78935R2DAGEVB
NCV78925R1DAGEVB
NCV78925R2DAGEVB
NCV78825R1DAGEVB
