Evaluation Board | FAN49103EVB

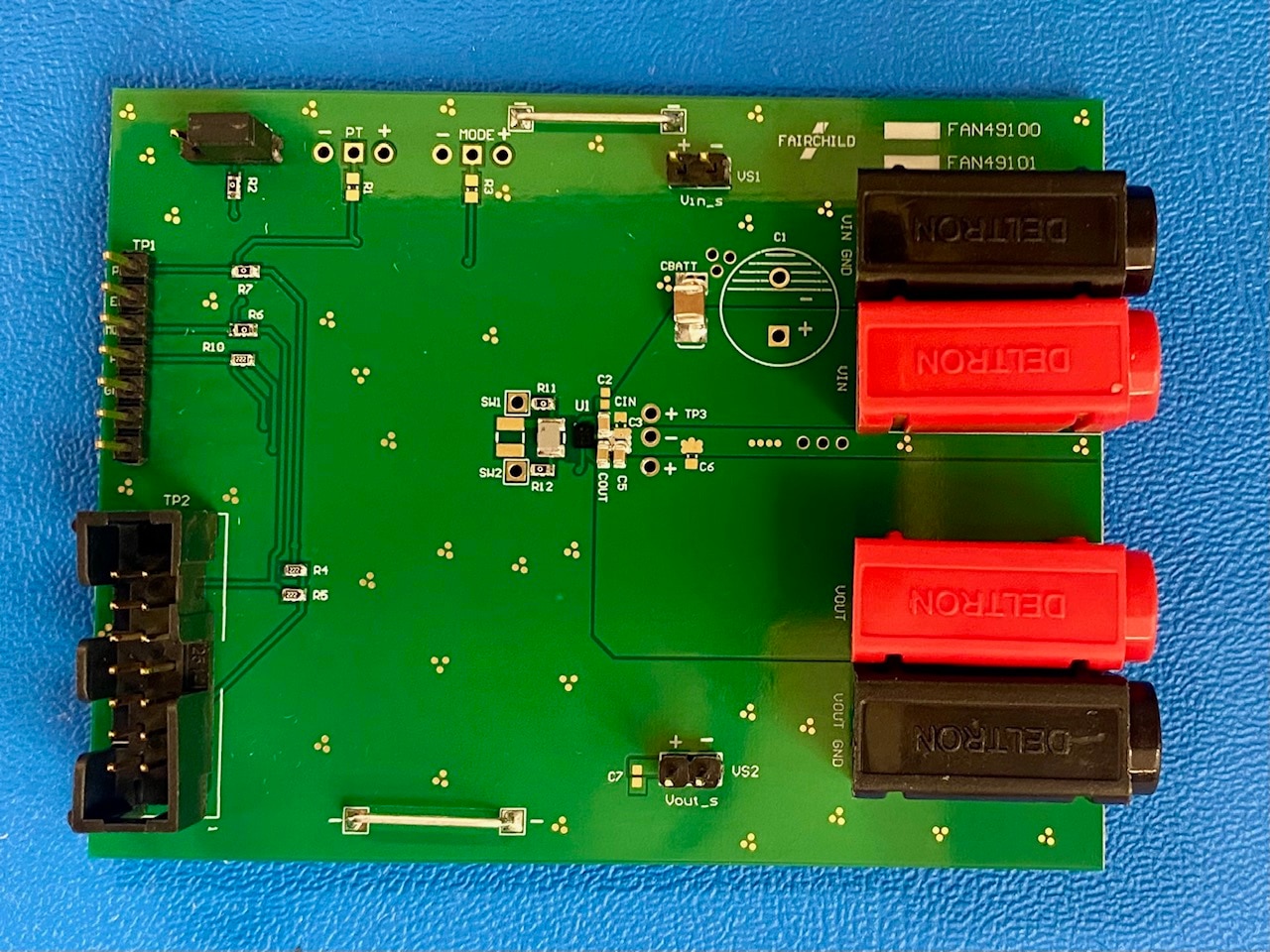

The FAN49103 evaluation board is a compact circuit for evaluating onsemi’s FAN49103 Buck-Boost regulator in a 20-bump Wafer-Level Chip-Scale Package (WLCSP).

The board includes a connector for  I²C communication.

The board also features footprints to accommodate additional input/output capacitors and probe access points to all key circuit nodes so that electrical characteristics can be measured.

Note: This evaluation board should be used with PICPODEVK evaluation kit for I2C communication.
