Evaluation Board | ECLLQFP32EVB

High Frequency Evaluation Board

Products
Jump to
Overview Evaluation/Development Tools Technical Documentation

Overview

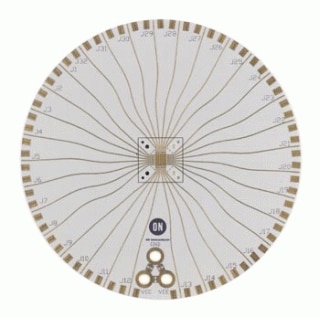

ON Semiconductor has developed an evaluation board for the devices in 32-lead LQFP package. These evaluation boards are offered as a convenience for the customers interested in performing their own engineering assessment on the general performance of the 32-lead LQFP device samples.

  • High bandwidth 50 Ohm controlled impedance.
  • Four layer board with split (dual) power supplies.
  • Accommodates several different design configurations.

Technical Documentation

Name / Description

Document Type

Modified date

Evaluation Board User's Manual for High Frequency LQFP32

EVBUM2055/D

3

Eval Board: Manual

538.62 KB

EN

Eval Board: Manual

November 01, 2019
