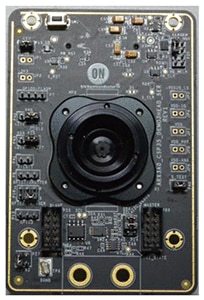

Evaluation Board | ARX3A0CSSC28SMKAH3-GEVB

0.3MP 1/10.3 CIS SOC RGB 28DEG CRA CSP Demo3 HB

Products
Jump to
Overview Evaluation/Development Tools Technical Documentation

Overview

The evaluation boards are designed to demonstrate the features of ON Semiconductor's image sensors products. This headboard is intended to plug directly into the Demo3 system. Test points and jumpers on the board provide access to the clock, I/Os and other miscellaneous signals.

  • Clock Input
    • Default 27 MHz Crystal Oscillator
    • Optional Demo3 Controlled MClk
  • Two Wire Serial Interface
    • Selectable Base Address
  • 2 Lane MIPI Interface
  • RoHS Compliant

    • Evaluation/Development Tools

    Product

    Type

    Ref. Design

    Status

    Part Used

    Reference Price

    ARX3A0CSSC28SMKAH3-GEVB

    0.3MP 1/10.3 CIS SOC RGB 28DEG CRA CSP Demo3 HB

    Evaluation Board

    No

    Active

    ARX3A0CSSC28SMD20,

    ARX3A0CSSC28SMKA0-CR

    Price N/A

    Loading...

    More Details

    Show More

    1-25 of 25

    Products per page

    Jump to :

    1

    Technical Documentation

    Name / Description

    Document Type

    Modified date

    ARX3A0 - CSP35 Evaluation Board User's Manual

    EVBUM2783/D

    0

    Eval Board: Manual

    906.24 KB

    EN

    Eval Board: Manual

    November 01, 2020
