Anti-tamper Active Shield
ON Semiconductor offers an anti-tamper active shield architecture as one of the first steps to tackle information security, IP protection and anti-counterfeiting in ASIC design. ASIC tampering is a calculated attempt to alter the operation of a product or uncover proprietary information in the design or operation of an ASIC. Critical data of any kind can be a target. Counterfeiting activities like reverse engineering, stealing or copying intellectual property, and repurposing returned merchandise threaten suppliers and customers daily.

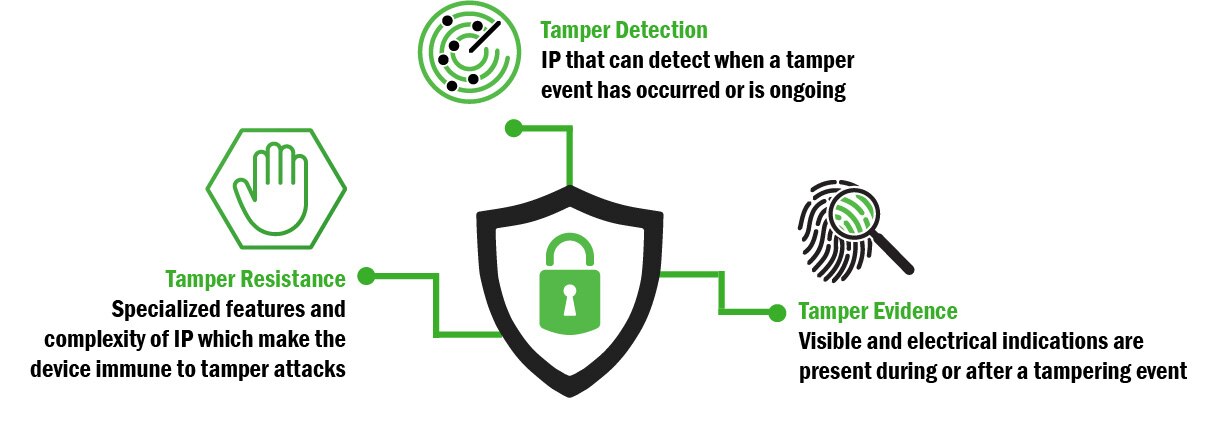

ON Semiconductor’s anti-tamper active shield satisfies three components of anti-tampering protection: resistance, detection and evidence.
ON Semiconductor’s anti-tamper active shield combats two specific ASIC tampering attack methods.
|Tamper Attack Method||Description|
|Microprobe||An attacker will be unable to easily microprobe the IC surface to directly observe, manipulate or interfere with the internal workings of the IC.|
|Reverse Engineering||Any attempt to reverse engineer an ASIC or portions of an ASIC are complicated due to the presence of the active shield.|
ON Semiconductor’s anti-tamper active shield is a random plane filled curve that is built in top level metal over specific IP or sensitive areas of the ASIC. Multiple lines can be employed and each functions as a powered and active screen rather than blockage simply used to hide sensitive areas. The need for anti-tamper strategies is associated with aerospace and defense applications, but the exponential rise of personal electronics use is driving all market segments to explore anti-tampering methods and offerings.
