NCV7441: CAN Transceiver, Dual, High Speed, Low Power

Overview
Specifications
Packages
Applications
Datasheet: CAN Transceiver, Dual, High Speed, Low Power
Rev. 0 (167.0kB)
»View Material Composition
»No Product Change Notifications exist
Product Overview
Product Description
The NCV7441, dual CAN transceiver offers two fully independent high-speed CAN transceivers which can be individually connected to two CAN protocol controllers. The CAN channels can be separately put to normal or to standby mode, in which remote wakeup detection from the bus is possible.
Due to the shared auxiliary circuitry and common package, this circuit version can replace two standard high-speed CAN transceivers while saving board space.
Features

  • Compatible with the ISO 11898 Standard (ISO 118982, ISO 118985 and SAE J2284)
  • Low Quiescent Current
  • High Speed (up to 1 Mbps)
  • Ideally Suited for 12 V and 24 V Industrial and Automotive Applications
  • Extremely Low Current Standby Mode with Wakeup Via the Bus
  • Low EME without Commonmode Choke
  • No Disturbance of the Bus Lines with an Unpowered Node
  • Predictable Behavior Under All Supply Circumstances
  • Transmit Data (TxD) Dominant Timeout Function
  • Thermal Protection
  • Bus Pins Protected Against Transients in an Automotive Environment
  • Power Down Mode in Which the Transmitter is Disabled
  • Bus and VSPLIT Pins Short Circuit Proof to Supply Voltage and Ground
  • Input Logic Levels Compatible with 3.3 V Devices
  • Up to 110 Nodes can be Connected to the Same Bus in Function of Topology
Applications   End Products
  • In-Vehicle Networking
  • Industrial Networking

  • Automobiles
  • Industrial Equipment
Technical Documentation & Design Resources
Tutorials (1) Package Drawings (1)
Data Sheets (1)
Availability and Samples
Product
Status
Compliance
Description
Package
MSL*
Container
Budgetary Price/Unit
Type
Case Outline
Type
Qty.
NCV7441D20G Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
CAN Transceiver, Dual, High Speed, Low Power SOIC-14 751A-03 2 Tube 55 Contact Sales Office
NCV7441D20R2G Active
AEC Qualified
PPAP Capable
Pb-free
Halide free
CAN Transceiver, Dual, High Speed, Low Power SOIC-14 751A-03 2 Tape and Reel 3000 Contact Sales Office
Moisture Sensitivity level (MSL) for surface mount devices (lead free measured at 260°C reflow, non lead free at 235°C reflow)
Market Leadtime (weeks) :
Arrow   (2014-10-31 20:46) : 245
Digi-Key   (2014-10-21 00:00) : <1K
Mouser   (2014-10-21 00:00) : <1K
Market Leadtime (weeks) :
Digi-Key   (2014-10-21 00:00) : >1K
ON Semiconductor   (2014-10-29 00:00) : 99,000
Datasheet: CAN Transceiver, Dual, High Speed, Low Power
Rev. 0 (167.0kB)
»View Material Composition
»No Product Change Notifications exist
Product Overview

Product Compliance Status Description Data Transmission Standard Data Rate Number of Drivers Number of Receivers VCC Min (V) VCC Max (V) tPLH Max (µs) IO Max (µA) IIH Max (mA) Package Type
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     CAN Transceiver, Dual, High Speed, Low Power   CAN   1 Mb/s   2   2   4.75   5.25   1   100000   20   SOIC-14
 AEC Qualified
 PPAP Capable
 Pb-free
 Halide free
 Active     CAN Transceiver, Dual, High Speed, Low Power   CAN   1 Mb/s   2   2   4.75   5.25   1   100000   20   SOIC-14
Datasheet: CAN Transceiver, Dual, High Speed, Low Power
Rev. 0 (167.0kB)
»View Material Composition
»No Product Change Notifications exist
Product Overview
Case Outlines

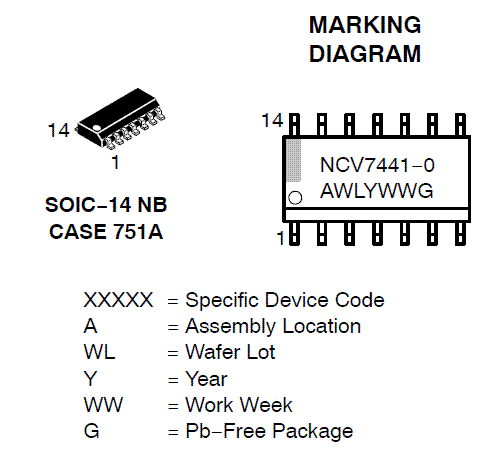

751A-03
Packages
