NCP6914: 5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs

Overview
Specifications
Packages
Applications
Datasheet: Mini-PMIC, 1 x 0.8 A DC-DC and 4 x 300 mA LDOs, I2C
Rev. 10 (842kB)
»View Material Composition
»Product Change Notification (2)
Product Overview
Product Description

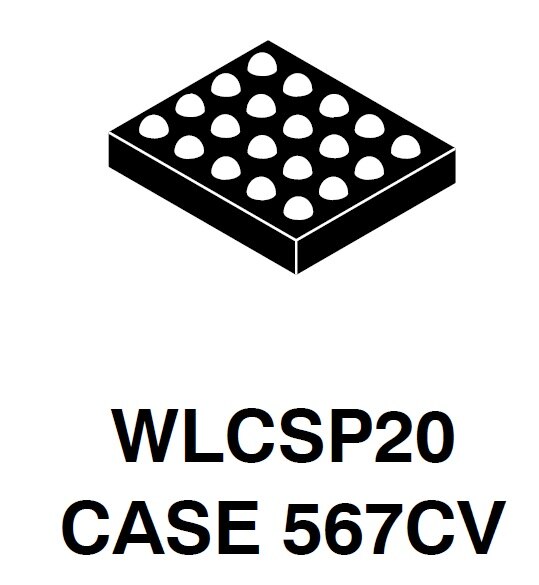

The NCP6914 is part of the ON Semiconductor mini-power management IC family. It is optimized to supply battery powered portable application subsystems such as camera modules, microprocessors or any peripherals. This device integrates one high efficiency 800 mA step-down DC to DC converter with DVS (Dynamic Voltage Scaling) and four low dropout (LDO) voltage regulators in WLCSP-20 1.77 x 2.06mm package.
Features   Benefits

  • Very small package 2.05 x 1.76 mm

  • Reduce PCB space
  • Ultra low quiescent current (72 µA typ)

  • Save battery life
  • I2C accessible prior enabling device allowing to change settings before powering up the system

  • Offer design flexibility
  • One DC-DC converter, efficiency 95%, programmable output voltage from 0.6 V to 3.3 V by 12.5 mV steps, 800 mA output current capability

  • Four low noise, low dropout regulators, programmable output voltage from 1.0 V to 3.3 V by 50 mV steps, 300 mA output current capability, 50 µVrms typical low output noise

Applications   End Products
  • Battery powered applications power management
  • Power supply for processor with low core voltage
  • Camera modules
  • Peripheral sub-systems
  • USB powered devices

  • Smartphones
  • Tablets
  • Wearable devices
  • MP3 players
Technical Documentation & Design Resources
Data Sheets (1) Package Drawings (1)
Availability and Samples
Product
Status
Compliance
Description
Package
MSL*
Container
Budgetary Price/Unit
Type
Case Outline
Type
Qty.
NCP6914AFCAT1G Active
Pb-free
Halide free
5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs WLCSP-20 567CV 1 Die Surf Tape and Reel 3000 $0.5667
NCP6914AFCBT1G Active
Pb-free
Halide free
5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs WLCSP-20 567CV 1 Die Surf Tape and Reel 3000 $0.5667
NCP6914AFCDT1G Active
Pb-free
Halide free
5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs WLCSP-20 567CV 1 Die Surf Tape and Reel 3000 $0.5667
Moisture Sensitivity level (MSL) for surface mount devices (lead free measured at 260°C reflow, non lead free at 235°C reflow)
Market Leadtime (weeks) :
ON Semiconductor   (2014-10-18 00:00) : 153,000
Market Leadtime (weeks) :
Market Leadtime (weeks) :
ON Semiconductor   (2014-10-18 00:00) : 165,000
Datasheet: Mini-PMIC, 1 x 0.8 A DC-DC and 4 x 300 mA LDOs, I2C
Rev. 10 (842kB)
»View Material Composition
»Product Change Notification (2)
Product Overview

Product Compliance Status Description Topology Control Mode VCC Min (V) VCC Max (V) VO Typ (V) IO Typ (A) Efficiency (%) fSW Typ (kHz) Package Type
 Pb-free
 Halide free
 Active     5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs   Step-Down   Voltage Mode   2.3   5.5   1.2   0.8   95   3000   WLCSP-20
 Pb-free
 Halide free
 Active     5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs   Step-Down   Voltage Mode   2.3   5.5   1.2   0.8   95   3000   WLCSP-20
 Pb-free
 Halide free
 Active     5 Channels Power Management IC (PMIC) with 1 DC-DC Converter and 4 LDOs   Step-Down   Voltage Mode   2.3   5.5   1.2   0.8   95   3000   WLCSP-20
