Product Overview
Product Description

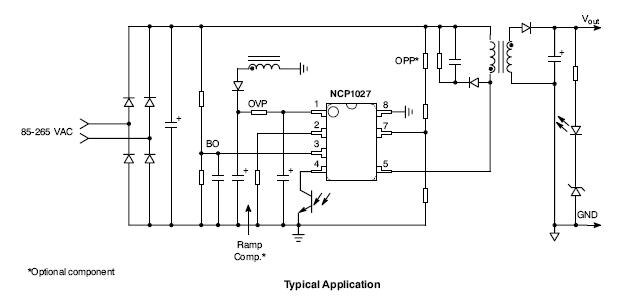

The NCP1027 offers a new solution targeting output power levels from a few watts up to 15W in a universal mains flyback application. Our proprietary high-voltage technology lets us include a power MOSFET together with a startup current source, all directly connected to the bulk capacitor. To prevent lethal runaway in low input voltage conditions, an adjustable brown-out circuitry blocks the activity until sufficient input level is reached.
Current-mode operation together with an adjustable ramp compensation offers superior performance in universal mains applications.
Protection wise, a timer detects an overload or a short-circuit and stops all operations, ensuring a safe auto-recovery, low duty cycle burst operation. An integrated, auto-recovery, Overvoltage Protection permanently monitors the VCC level and temporarily shuts down the driving pulses in case of an unexpected feedback loop runaway.
Finally, a great RDS(on) figure makes the circuit an excellent choice for standby/auxiliary offline power supplies or applications requiring higher output power levels.
Features

  • Built-in 700 V MOSFET with Typical RDS(on) of 5.8 , Tj = 25C
  • Current-Mode Fixed Frequency Operation: 65 & 100 kHz
  • Fixed Peak Current of 800 mA
  • Proprietary Skip-Cycle Operation at Low Peak Currents
  • Internal Current Source for Clean and Lossless Startup Sequence
  • Auto-Recovery Output Short Circuit Protection with Timer-Based Detection
  • Auto-Recovery Overvoltage Protection with Auxiliary Winding Operation
  • Programmable Brown-Out Input for Low Input Voltage Detection
  • Input to Permanently Latchoff the Part
  • Internal Frequency Jittering for Improved EMI Signature
  • No-Load Input Standby Power of 85 mW @ 265 Vac
  • 500 mW Loaded, Input Power of 715 mW @ 230 Vac
  • Programmable Over Power Protection
Applications   End Products
  • Medium Power AC-DC Adapters for Chargers
  • Auxiliary power supply
  • Medium Power AC-DC power supply for CE apparatus

  • Mpeg3 players
  • Flat Tvs: LCD and Plasma
  • Deskop PC, Server
  • DVD, Set Top Box
Technical Documentation & Design Resources
Design & Development Tools (2) Data Sheets (1)
Reference Designs (5) Package Drawings (1)
Design Notes (4) Videos (1)
Application Notes (9) Evaluation Board Documents (13)
Simulation Models (2)
Evaluation/Development Tool Information
Product Status Compliance Short Description Action
NCP1027ATXGEVB Active
Pb-free
10 W Standby ATX Evaluation Board
NCP1398LCDGEVB Active
Pb-free
NCP1398 PFC+LCC+STBY LED-TV Design Power Supply
NCP1910GEVB Active
PFC and LLC controller for ATX, Flat TV Power Conversion
Avnet (2014-07-22) : 2
Mouser (2014-07-22) : 2
Digi-Key (2014-07-22) : 2
Avnet (2014-07-22) : 1
Avnet (2014-07-22) : 1
Availability and Samples
Product
Status
Compliance
Description
Package
MSL*
Container
Budgetary Price/Unit
Type
Case Outline
Type
Qty.
NCP1027P065G Active
Pb-free
Halide free

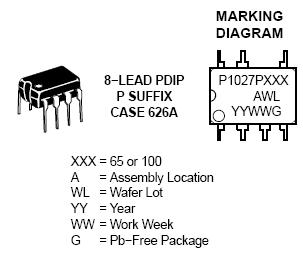

High Voltage Switching Regulator for Offline SMPS PDIP-8 626A-01 NA Tube 50 $0.45
NCP1027P100G Active
Pb-free
Halide free
High Voltage Switching Regulator for Offline SMPS PDIP-8 626A-01 NA Tube 50 $0.45
Moisture Sensitivity level (MSL) for surface mount devices (lead free measured at 260°C reflow, non lead free at 235°C reflow)
Market Leadtime (weeks) :
Avnet   (2014-07-22 00:00) : >1K
Digi-Key   (2014-07-22 00:00) : <1K
Mouser   (2014-07-22 00:00) : <1K
P&S   (2014-07-22 00:00) : <1K
Market Leadtime (weeks) :
Avnet   (2014-07-22 00:00) : <100
Mouser   (2014-07-22 00:00) : <100
Datasheet: High−Voltage Switcher for Medium Power Offline SMPS Featuring Low Standby Power
Rev. 4 (637.0kB)
»View Reliability Data
»View Material Composition
»Product Change Notification (6)
Product Overview

Product Compliance Status Description Control Mode fsw Typ (kHz) fJitter Typ (%) Stand-by Mode RDS(ON) Typ (Ω) V(BR)DSS Max (V) IPeak (mA) HV Start-up Min (V) DSS (mA) UVLO Short Circuit Protection Over Power Comp. Brown-out Latch Package Type
 Pb-free
 Halide free
 Active     High Voltage Switching Regulator for Offline SMPS   Current Mode   65   Yes   Yes   5.6   700   800   Yes   N/A   Yes   Yes   Yes   Yes   Yes   PDIP-8
 Pb-free
 Halide free
 Active     High Voltage Switching Regulator for Offline SMPS   Current Mode   100   Yes   Yes   5.6   700   800   Yes   N/A   Yes   Yes   Yes   Yes   Yes   PDIP-8
