NCN5120: KNX Transceiver for Twisted Pair Networks

Overview
Specifications
Applications
Datasheet: NCN5120 KNX Transceiver for Twisted Pair Networks
Rev. 5 (444kB)
»View Material Composition
»No Product Change Notifications exist
Product Overview

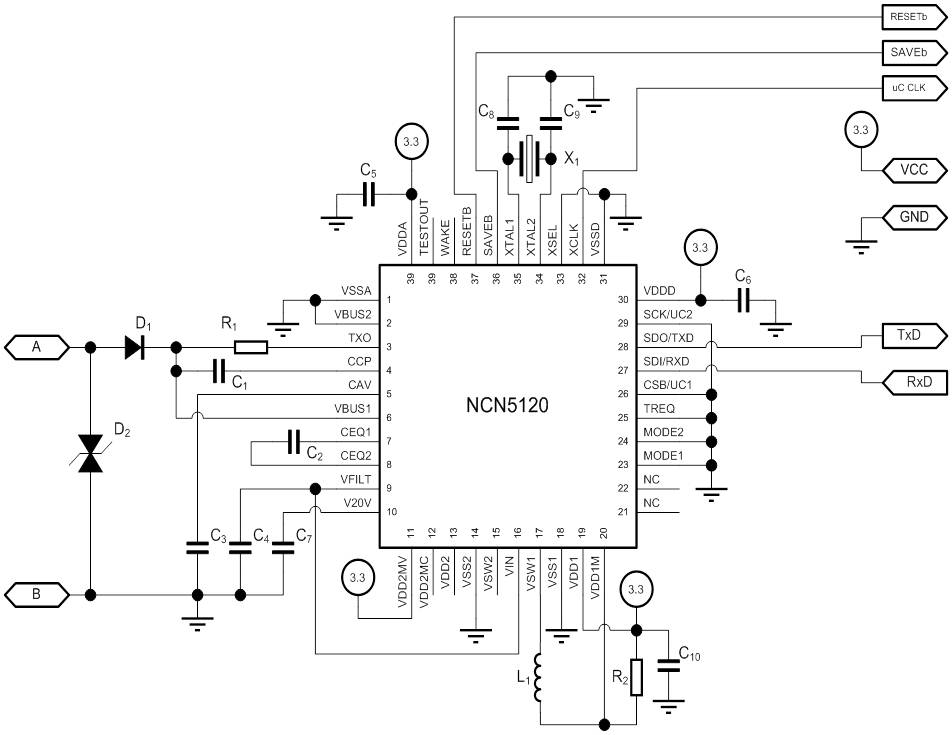

Product Description
The NCN5120 is the first IC from ON Semiconductor's family of KNX transceivers, handling the transmission and reception of data on the bus. It integrates a 20 V regulator and two high efficient DC-DC converters generating a fixed 3.3 V and a selectable 3.3 to 21 V regulated voltage from the bus with 100 mA drive capability each. This transceiver is ideal for high power applications and has been designed to reduce the bill of materials while supporting safe and reliable coupling to the bus thanks to features such as selectable current slope, bus voltage and temperature monitoring.
Features   Benefits

  • KNX certified EIB transceiver with embedded PHY and MAC layers (TP1-256)

  • High level of integration, minimal BOM cost
  • KNX communication speed of 9600 Bauds

  • Enables high power KNX applications to be connected and supplied from the KNX bus
  • Two high efficient DC-DC converters generating board supply:
    - DC-DC1 : fixed 3.3 V
    - DC-DC2 : adjustable between 3.3 and 21 V

  • While designed to offer unique features for most advanced KNX systems, its flexiblity also simplifies integration into legacy designs.
  • 20 V linear regulator

  • Configurable fan-in model (up to 2 virtual nodes) and current slopes

  • Supervision of KNX bus voltage

  • Control and monitoring of the DC-DC converters

  • Configurable amount of repetition

  • Buffering of sent data frames

  • Optional auto acknowledge

  • Supports Analog Mode

  • Supports Sleep Mode

  • Selectable UART/SPI interface and baud rate to Host Controller

  • Comprehensive clocking system
    - Operates with industry standard low cost 16 MHz quartz
    - Can generate 8/16 MHz clock for the external MCU

  • Operating temperature range -25 C to +85 C

  • Household appliances

Applications   End Products
  • In-home automation
  • Building automation

  • Smart lighting & switches
  • Ventilation and air conditioning
  • Thermostats
  • Alarms and smoke detectors
Technical Documentation & Design Resources
Design & Development Tools (3) Package Drawings (1)
Application Notes (3) Evaluation Board Documents (9)
Data Sheets (1)
Evaluation/Development Tool Information
Product Status Compliance Short Description Action
NCN51205GEVB Active
Pb-free
KNX Transceiver Application Development Evaluation Board
NCN51206GEVB Active
Pb-free
Reference Design Switch Application Evaluation Board
Avnet (2014-08-29) : 1
Digi-Key (2014-08-29) : 2
Availability and Samples
Product
Status
Compliance
Description
Package
MSL*
Container
Budgetary Price/Unit
Type
Case Outline
Type
Qty.
NCN5120MNG Obsolete
Pb-free
Halide free
KNX Transceiver for Twisted Pair Networks, 21245-002-XTD QFN-40 485AU 3 Tube 50
NCN5120MNTWG Active
Pb-free
Halide free
KNX Transceiver for Twisted Pair Networks, 21245-002-XTP QFN-40 485AU 3 Tape and Reel 3000 $3.5
Moisture Sensitivity level (MSL) for surface mount devices (lead free measured at 260°C reflow, non lead free at 235°C reflow)
Market Leadtime (weeks) :
Market Leadtime (weeks) :
Datasheet: NCN5120 KNX Transceiver for Twisted Pair Networks
Rev. 5 (444kB)
»View Material Composition
»No Product Change Notifications exist
Product Overview

Product Compliance Status Description Data Transmission Standard Data Rate Number of Drivers Number of Receivers VCC Min (V) VCC Max (V) tPLH Max (µs) IO Max (µA) IIH Max (mA) Package Type
 Pb-free
 Halide free
 Active     KNX Transceiver for Twisted Pair Networks, 21245-002-XTP   KNX   9600 baud   1   1   3.13   3.47         QFN-40
Datasheet: NCN5120 KNX Transceiver for Twisted Pair Networks
Rev. 5 (444kB)
»View Material Composition
»No Product Change Notifications exist
Product Overview
Case Outlines
485AU
