ADT7461A: Temperature Sensor with Series Resistance Cancellation

Overview
Specifications
Packages
Applications
Datasheet: Temperature Monitor with Series Resistance Cancellation
Rev. 8 (294.0kB)
»View Material Composition
»Product Change Notification (8)
Product Overview
Product Description

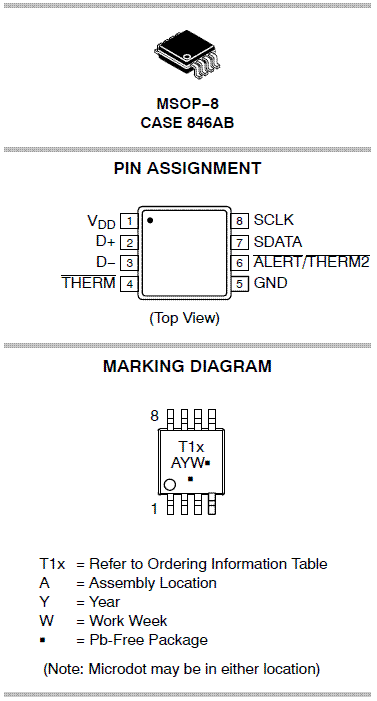

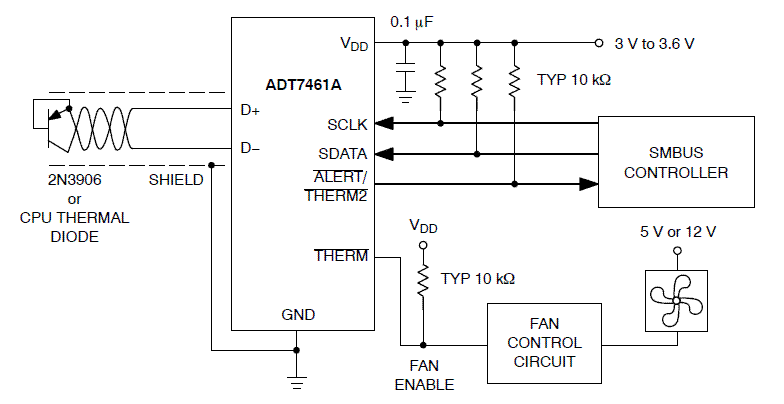

The ADT7461A is a dual-channel digital thermometer and undertemperature/overtemperature alarm, intended for use in PCs and thermal management systems. It is pin- and register-compatible with the ADM1032 and the ADT7461. A feature of the ADT7461A is series resistance cancellation, where up to 1.5 kΩ (typical) of resistance in series with the temperature monitoring diode can be automatically cancelled from the temperature result, allowing noise filtering.
Features

  • On-chip and remote temperature sensor
  • 0.25°C resolution/1°C accuracy on remote channel
  • 1°C resolution/1°C accuracy on local channel
  • Automatically cancels up to 1.5 kΩ (typical) of resistance in series with remote diode to allow noise filtering
  • Extended, switchable temperature measurement range 0°C to +127°C (default) or 64°C to +191°C
  • Pin- and register-compatible with ADM1032 and ADT7461
  • 2-wire SMBus serial interface with SMBus alert support
  • Programmable over/undertemperature limits
  • Offset registers for system calibration
  • Up to two overtemperature fail-safe THERM outputs
  • 240 µA operating current, 5 µA standby current
  • DSL Line Cards
Applications   End Products
  • Thermal Management

  • Notebook and Desktop Computers
  • Game Consoles
  • RFID Readers
  • Graphics Cards
  • LCD TVs
  • Dishwashers
Technical Documentation & Design Resources
Application Notes (1) Package Drawings (1)
Data Sheets (1)
Availability and Samples
Product
Status
Compliance
Description
Package
MSL*
Container
Budgetary Price/Unit
Type
Case Outline
Type
Qty.
ADT7461AARMZ Last Shipments
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tube 50
ADT7461AARMZ-2RL Lifetime
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 3000 $2.6533
ADT7461AARMZ-R Active
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 3000 $2.6533
ADT7461AARMZ-RL7 Last Shipments
Pb-free
Halide free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 1000
ADT7461AARMZ2RL7 Last Shipments
Pb-free
Temperature Sensor with Series Resistance Cancellation Micro8™ 846A-02 1 Tape and Reel 1000
Moisture Sensitivity level (MSL) for surface mount devices (lead free measured at 260°C reflow, non lead free at 235°C reflow)
Market Leadtime (weeks) :
Market Leadtime (weeks) :
Chip1Stop   (2014-10-21 00:00) : >1K
Mouser   (2014-10-21 00:00) : >1K
Market Leadtime (weeks) :
Digi-Key   (2014-10-21 00:00) : >1K
Mouser   (2014-10-21 00:00) : >1K
Market Leadtime (weeks) :
Market Leadtime (weeks) :
P&S   (2014-10-21 00:00) : <1K
Datasheet: Temperature Monitor with Series Resistance Cancellation
Rev. 8 (294.0kB)
»View Material Composition
»Product Change Notification (8)
Product Overview

Product Compliance Status Description Sensor Type Data Transmission Standard ICC Max (mA) VCC Min (V) VCC Max (V) T Min (°C) T Max (°C) Temperature Error (°C) Package Type
 Pb-free
 Halide free
 Active     Temperature Sensor with Series Resistance Cancellation   Local & Remote   SMBus   0.35   3   3.6   -40   125   ±1   Micro8™
